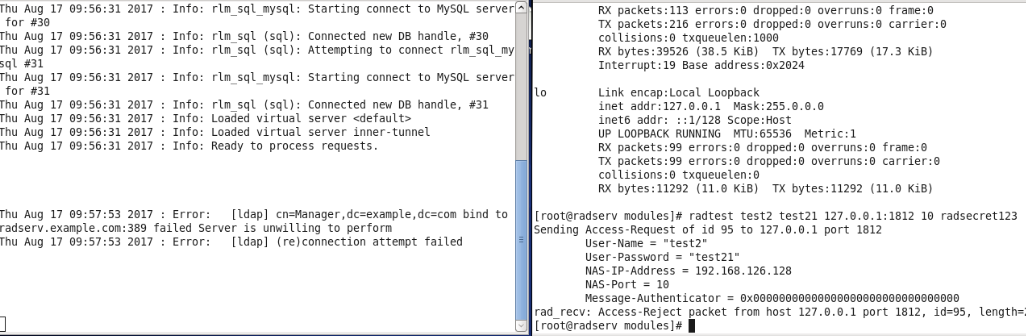

Hi All, I have set up a lab with 2 virtual boxes. One machine acts as freeRadius server and openldap server(backend). The other as radius client. I configured Radius server, modules for Ldap, openLdap server and everything is fine. I tested authenticating user in openLDAP server which also is good. radtest to localhost from the server throws error. *radius.log output:* Sun Aug 20 13:31:25 2017 : Info: rlm_sql (sql): Connected new DB handle, #31 Sun Aug 20 13:31:25 2017 : Info: Loaded virtual server <default> Sun Aug 20 13:31:25 2017 : Info: Loaded virtual server inner-tunnel Sun Aug 20 13:31:25 2017 : Info: Ready to process requests. Sun Aug 20 13:36:30 2017 : Error: [ldap] cn=Manager,dc=example,dc=com bind to radserv.example.com:389 failed Server is unwilling to perform Sun Aug 20 13:36:30 2017 : Error: [ldap] (re)connection attempt failed Sun Aug 20 14:03:23 2017 : Error: [ldap] cn=Manager,dc=example,dc=com bind to radserv.example.com:389 failed Server is unwilling to perform Sun Aug 20 14:03:23 2017 : Error: [ldap] (re)connection attempt failed [image: Inline image 1] *Here is the radiusd output* [root@radserv tmp]# radiusd -X radiusd: FreeRADIUS Version 2.2.6, for host i386-redhat-linux-gnu, built on Jul 18 2017 at 12:07:53 Copyright (C) 1999-2013 The FreeRADIUS server project and contributors. There is NO warranty; not even for MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. You may redistribute copies of FreeRADIUS under the terms of the GNU General Public License. For more information about these matters, see the file named COPYRIGHT. Starting - reading configuration files ... including configuration file /etc/raddb/radiusd.conf including configuration file /etc/raddb/proxy.conf including configuration file /etc/raddb/clients.conf including files in directory /etc/raddb/modules/ including configuration file /etc/raddb/modules/cui including configuration file /etc/raddb/modules/radutmp including configuration file /etc/raddb/modules/dhcp_sqlippool including configuration file /etc/raddb/modules/ldap including configuration file /etc/raddb/modules/redis including configuration file /etc/raddb/modules/sql_log including configuration file /etc/raddb/modules/acct_unique including configuration file /etc/raddb/modules/smsotp including configuration file /etc/raddb/modules/detail.log including configuration file /etc/raddb/modules/checkval including configuration file /etc/raddb/modules/ippool including configuration file /etc/raddb/modules/perl including configuration file /etc/raddb/modules/chap including configuration file /etc/raddb/modules/echo including configuration file /etc/raddb/modules/pap including configuration file /etc/raddb/modules/attr_filter including configuration file /etc/raddb/modules/policy including configuration file /etc/raddb/modules/linelog including configuration file /etc/raddb/modules/mschap including configuration file /etc/raddb/modules/unix including configuration file /etc/raddb/modules/attr_rewrite including configuration file /etc/raddb/modules/cache including configuration file /etc/raddb/modules/expr including configuration file /etc/raddb/modules/mac2vlan including configuration file /etc/raddb/modules/files including configuration file /etc/raddb/modules/opendirectory including configuration file /etc/raddb/modules/smbpasswd including configuration file /etc/raddb/modules/inner-eap including configuration file /etc/raddb/modules/passwd including configuration file /etc/raddb/modules/sqlcounter_expire_on_login including configuration file /etc/raddb/modules/dynamic_clients including configuration file /etc/raddb/modules/detail.example.com including configuration file /etc/raddb/modules/rediswho including configuration file /etc/raddb/modules/preprocess including configuration file /etc/raddb/modules/logintime including configuration file /etc/raddb/modules/realm including configuration file /etc/raddb/modules/detail including configuration file /etc/raddb/modules/sradutmp including configuration file /etc/raddb/modules/expiration including configuration file /etc/raddb/modules/mac2ip including configuration file /etc/raddb/modules/ntlm_auth including configuration file /etc/raddb/modules/wimax including configuration file /etc/raddb/modules/replicate including configuration file /etc/raddb/modules/exec including configuration file /etc/raddb/modules/digest including configuration file /etc/raddb/modules/soh including configuration file /etc/raddb/modules/etc_group including configuration file /etc/raddb/modules/otp including configuration file /etc/raddb/modules/radrelay including configuration file /etc/raddb/modules/always including configuration file /etc/raddb/modules/pam including configuration file /etc/raddb/modules/counter including configuration file /etc/raddb/eap.conf including configuration file /etc/raddb/sql.conf including configuration file /etc/raddb/sql/mysql/dialup.conf including configuration file /etc/raddb/policy.conf including files in directory /etc/raddb/sites-enabled/ including configuration file /etc/raddb/sites-enabled/inner-tunnel including configuration file /etc/raddb/sites-enabled/default including configuration file /etc/raddb/sites-enabled/control-socket main { user = "radiusd" group = "radiusd" allow_core_dumps = no } including dictionary file /etc/raddb/dictionary main { name = "radiusd" prefix = "/usr" localstatedir = "/var" sbindir = "/usr/sbin" logdir = "/var/log/radius" run_dir = "/var/run/radiusd" libdir = "/usr/lib/freeradius" radacctdir = "/var/log/radius/radacct" hostname_lookups = no max_request_time = 30 cleanup_delay = 5 max_requests = 1024 pidfile = "/var/run/radiusd/radiusd.pid" checkrad = "/usr/sbin/checkrad" debug_level = 0 proxy_requests = yes log { stripped_names = no auth = no auth_badpass = no auth_goodpass = no } security { max_attributes = 200 reject_delay = 1 status_server = yes } } radiusd: #### Loading Realms and Home Servers #### proxy server { retry_delay = 5 retry_count = 3 default_fallback = no dead_time = 120 wake_all_if_all_dead = no } home_server localhost { ipaddr = 127.0.0.1 port = 1812 type = "auth" secret = "testing123" response_window = 20.000000 response_timeouts = 1 max_outstanding = 65536 require_message_authenticator = yes zombie_period = 40 status_check = "status-server" ping_interval = 30 check_interval = 30 num_answers_to_alive = 3 num_pings_to_alive = 3 revive_interval = 120 status_check_timeout = 4 coa { irt = 2 mrt = 16 mrc = 5 mrd = 30 } } home_server_pool my_auth_failover { type = fail-over home_server = localhost } realm example.com { auth_pool = my_auth_failover } realm LOCAL { } radiusd: #### Loading Clients #### client localhost { ipaddr = 127.0.0.1 require_message_authenticator = no secret = "radsecret123" nastype = "other" } client 192.168.126.129 { ipaddr = 192.168.126.129 require_message_authenticator = no secret = "othersecret123" } radiusd: #### Instantiating modules #### instantiate { Module: Linked to module rlm_exec Module: Instantiating module "exec" from file /etc/raddb/modules/exec exec { wait = no input_pairs = "request" shell_escape = yes timeout = 10 } Module: Linked to module rlm_expr Module: Instantiating module "expr" from file /etc/raddb/modules/expr Module: Linked to module rlm_expiration Module: Instantiating module "expiration" from file /etc/raddb/modules/expiration expiration { reply-message = "Password Has Expired " } Module: Linked to module rlm_logintime Module: Instantiating module "logintime" from file /etc/raddb/modules/logintime logintime { reply-message = "You are calling outside your allowed timespan " minimum-timeout = 60 } } radiusd: #### Loading Virtual Servers #### server { # from file ? modules { Module: Creating Auth-Type = digest Module: Creating Auth-Type = LDAP Module: Creating Post-Auth-Type = REJECT Module: Checking authenticate {...} for more modules to load Module: Linked to module rlm_pap Module: Instantiating module "pap" from file /etc/raddb/modules/pap pap { encryption_scheme = "auto" auto_header = no } Module: Linked to module rlm_chap Module: Instantiating module "chap" from file /etc/raddb/modules/chap Module: Linked to module rlm_mschap Module: Instantiating module "mschap" from file /etc/raddb/modules/mschap mschap { use_mppe = yes require_encryption = no require_strong = no with_ntdomain_hack = no allow_retry = yes } Module: Linked to module rlm_digest Module: Instantiating module "digest" from file /etc/raddb/modules/digest Module: Linked to module rlm_unix Module: Instantiating module "unix" from file /etc/raddb/modules/unix unix { radwtmp = "/var/log/radius/radwtmp" } Module: Linked to module rlm_ldap Module: Instantiating module "ldap" from file /etc/raddb/modules/ldap ldap { server = "radserv.example.com" port = 389 password = "" expect_password = yes identity = "cn=Manager,dc=example,dc=com" net_timeout = 1 timeout = 4 timelimit = 5 max_uses = 0 tls_mode = no start_tls = no tls_require_cert = "allow" tls { start_tls = no require_cert = "allow" } basedn = "dc=example,dc=com" filter = "(uid=%{%{Stripped-User-Name}:-%{User-Name}})" base_filter = "(objectclass=radiusprofile)" auto_header = no access_attr_used_for_allow = yes groupname_attribute = "cn" groupmembership_filter = "(|(&(objectClass=GroupOfNames)(member=%{Ldap-UserDn}))(&(objectClass=GroupOfUniqueNames)(uniquemember=%{Ldap-UserDn})))" dictionary_mapping = "/etc/raddb/ldap.attrmap" ldap_debug = 0 ldap_connections_number = 5 compare_check_items = no do_xlat = yes set_auth_type = yes keepalive { idle = 60 probes = 3 interval = 3 } } rlm_ldap: Registering ldap_groupcmp for Ldap-Group rlm_ldap: Registering ldap_xlat with xlat_name ldap rlm_ldap: reading ldap<->radius mappings from file /etc/raddb/ldap.attrmap rlm_ldap: LDAP radiusCheckItem mapped to RADIUS $GENERIC$ rlm_ldap: LDAP radiusReplyItem mapped to RADIUS $GENERIC$ rlm_ldap: LDAP radiusAuthType mapped to RADIUS Auth-Type rlm_ldap: LDAP radiusSimultaneousUse mapped to RADIUS Simultaneous-Use rlm_ldap: LDAP radiusCalledStationId mapped to RADIUS Called-Station-Id rlm_ldap: LDAP radiusCallingStationId mapped to RADIUS Calling-Station-Id rlm_ldap: LDAP lmPassword mapped to RADIUS LM-Password rlm_ldap: LDAP ntPassword mapped to RADIUS NT-Password rlm_ldap: LDAP sambaLmPassword mapped to RADIUS LM-Password rlm_ldap: LDAP sambaNtPassword mapped to RADIUS NT-Password rlm_ldap: LDAP dBCSPwd mapped to RADIUS LM-Password rlm_ldap: LDAP userPassword mapped to RADIUS Password-With-Header rlm_ldap: LDAP acctFlags mapped to RADIUS SMB-Account-CTRL-TEXT rlm_ldap: LDAP radiusExpiration mapped to RADIUS Expiration rlm_ldap: LDAP radiusNASIpAddress mapped to RADIUS NAS-IP-Address rlm_ldap: LDAP userPassword mapped to RADIUS User-Password rlm_ldap: LDAP radiusServiceType mapped to RADIUS Service-Type rlm_ldap: LDAP radiusFramedProtocol mapped to RADIUS Framed-Protocol rlm_ldap: LDAP radiusFramedIPAddress mapped to RADIUS Framed-IP-Address rlm_ldap: LDAP radiusFramedIPNetmask mapped to RADIUS Framed-IP-Netmask rlm_ldap: LDAP radiusFramedRoute mapped to RADIUS Framed-Route rlm_ldap: LDAP radiusFramedRouting mapped to RADIUS Framed-Routing rlm_ldap: LDAP radiusFilterId mapped to RADIUS Filter-Id rlm_ldap: LDAP radiusFramedMTU mapped to RADIUS Framed-MTU rlm_ldap: LDAP radiusFramedCompression mapped to RADIUS Framed-Compression rlm_ldap: LDAP radiusLoginIPHost mapped to RADIUS Login-IP-Host rlm_ldap: LDAP radiusLoginService mapped to RADIUS Login-Service rlm_ldap: LDAP radiusLoginTCPPort mapped to RADIUS Login-TCP-Port rlm_ldap: LDAP radiusCallbackNumber mapped to RADIUS Callback-Number rlm_ldap: LDAP radiusCallbackId mapped to RADIUS Callback-Id rlm_ldap: LDAP radiusFramedIPXNetwork mapped to RADIUS Framed-IPX-Network rlm_ldap: LDAP radiusClass mapped to RADIUS Class rlm_ldap: LDAP radiusSessionTimeout mapped to RADIUS Session-Timeout rlm_ldap: LDAP radiusIdleTimeout mapped to RADIUS Idle-Timeout rlm_ldap: LDAP radiusTerminationAction mapped to RADIUS Termination-Action rlm_ldap: LDAP radiusLoginLATService mapped to RADIUS Login-LAT-Service rlm_ldap: LDAP radiusLoginLATNode mapped to RADIUS Login-LAT-Node rlm_ldap: LDAP radiusLoginLATGroup mapped to RADIUS Login-LAT-Group rlm_ldap: LDAP radiusFramedAppleTalkLink mapped to RADIUS Framed-AppleTalk-Link rlm_ldap: LDAP radiusFramedAppleTalkNetwork mapped to RADIUS Framed-AppleTalk-Network rlm_ldap: LDAP radiusFramedAppleTalkZone mapped to RADIUS Framed-AppleTalk-Zone rlm_ldap: LDAP radiusPortLimit mapped to RADIUS Port-Limit rlm_ldap: LDAP radiusLoginLATPort mapped to RADIUS Login-LAT-Port rlm_ldap: LDAP radiusReplyMessage mapped to RADIUS Reply-Message rlm_ldap: LDAP radiusTunnelType mapped to RADIUS Tunnel-Type rlm_ldap: LDAP radiusTunnelMediumType mapped to RADIUS Tunnel-Medium-Type rlm_ldap: LDAP radiusTunnelPrivateGroupId mapped to RADIUS Tunnel-Private-Group-Id conns: 0x1693650 Module: Linked to module rlm_eap Module: Instantiating module "eap" from file /etc/raddb/eap.conf eap { default_eap_type = "md5" timer_expire = 60 ignore_unknown_eap_types = no cisco_accounting_username_bug = no max_sessions = 1024 } Module: Linked to sub-module rlm_eap_md5 Module: Instantiating eap-md5 Module: Linked to sub-module rlm_eap_leap Module: Instantiating eap-leap Module: Linked to sub-module rlm_eap_gtc Module: Instantiating eap-gtc gtc { challenge = "Password: " auth_type = "PAP" } Module: Linked to sub-module rlm_eap_tls Module: Instantiating eap-tls tls { rsa_key_exchange = no dh_key_exchange = yes rsa_key_length = 512 dh_key_length = 512 verify_depth = 0 CA_path = "/etc/raddb/certs" pem_file_type = yes private_key_file = "/etc/raddb/certs/server.pem" certificate_file = "/etc/raddb/certs/server.pem" CA_file = "/etc/raddb/certs/ca.pem" private_key_password = "whatever" dh_file = "/etc/raddb/certs/dh" fragment_size = 1024 include_length = yes check_crl = no cipher_list = "DEFAULT" ecdh_curve = "prime256v1" cache { enable = no lifetime = 24 max_entries = 255 } verify { } ocsp { enable = no override_cert_url = yes url = "http://127.0.0.1/ocsp/" use_nonce = yes timeout = 0 softfail = no } } Module: Linked to sub-module rlm_eap_ttls Module: Instantiating eap-ttls ttls { default_eap_type = "md5" copy_request_to_tunnel = no use_tunneled_reply = no virtual_server = "inner-tunnel" include_length = yes } Module: Linked to sub-module rlm_eap_peap Module: Instantiating eap-peap peap { default_eap_type = "mschapv2" copy_request_to_tunnel = no use_tunneled_reply = no proxy_tunneled_request_as_eap = yes virtual_server = "inner-tunnel" soh = no } Module: Linked to sub-module rlm_eap_mschapv2 Module: Instantiating eap-mschapv2 mschapv2 { with_ntdomain_hack = no send_error = no } Module: Checking authorize {...} for more modules to load Module: Linked to module rlm_preprocess Module: Instantiating module "preprocess" from file /etc/raddb/modules/preprocess preprocess { huntgroups = "/etc/raddb/huntgroups" hints = "/etc/raddb/hints" with_ascend_hack = no ascend_channels_per_line = 23 with_ntdomain_hack = no with_specialix_jetstream_hack = no with_cisco_vsa_hack = no with_alvarion_vsa_hack = no } reading pairlist file /etc/raddb/huntgroups reading pairlist file /etc/raddb/hints Module: Linked to module rlm_realm Module: Instantiating module "suffix" from file /etc/raddb/modules/realm realm suffix { format = "suffix" delimiter = "@" ignore_default = no ignore_null = no } Module: Linked to module rlm_files Module: Instantiating module "files" from file /etc/raddb/modules/files files { usersfile = "/etc/raddb/users" acctusersfile = "/etc/raddb/acct_users" preproxy_usersfile = "/etc/raddb/preproxy_users" compat = "no" } reading pairlist file /etc/raddb/users reading pairlist file /etc/raddb/acct_users reading pairlist file /etc/raddb/preproxy_users Module: Checking preacct {...} for more modules to load Module: Linked to module rlm_acct_unique Module: Instantiating module "acct_unique" from file /etc/raddb/modules/acct_unique acct_unique { key = "User-Name, Acct-Session-Id, NAS-IP-Address, NAS-Identifier, NAS-Port" } Module: Checking accounting {...} for more modules to load Module: Linked to module rlm_detail Module: Instantiating module "detail" from file /etc/raddb/modules/detail detail { detailfile = "/var/log/radius/radacct/%{%{Packet-Src-IP-Address}:-%{Packet-Src-IPv6-Address}}/detail-%Y%m%d" header = "%t" detailperm = 384 dirperm = 493 locking = no log_packet_header = no } Module: Linked to module rlm_sql Module: Instantiating module "sql" from file /etc/raddb/sql.conf sql { driver = "rlm_sql_mysql" server = "localhost" port = "" login = "radius" password = "radpass" radius_db = "radius" read_groups = yes sqltrace = no sqltracefile = "/var/log/radius/sqltrace.sql" readclients = no deletestalesessions = yes num_sql_socks = 32 lifetime = 0 max_queries = 0 sql_user_name = "%{User-Name}" default_user_profile = "" nas_query = "SELECT id, nasname, shortname, type, secret, server FROM nas" authorize_check_query = "SELECT id, username, attribute, value, op FROM radcheck WHERE username = '%{SQL-User-Name}' ORDER BY id" authorize_reply_query = "SELECT id, username, attribute, value, op FROM radreply WHERE username = '%{SQL-User-Name}' ORDER BY id" authorize_group_check_query = "SELECT id, groupname, attribute, Value, op FROM radgroupcheck WHERE groupname = '%{Sql-Group}' ORDER BY id" authorize_group_reply_query = "SELECT id, groupname, attribute, value, op FROM radgroupreply WHERE groupname = '%{Sql-Group}' ORDER BY id" accounting_onoff_query = " UPDATE radacct SET acctstoptime = '%S', acctsessiontime = unix_timestamp('%S') - unix_timestamp(acctstarttime), acctterminatecause = '%{Acct-Terminate-Cause}', acctstopdelay = %{%{Acct-Delay-Time}:-0} WHERE acctstoptime IS NULL AND nasipaddress = '%{NAS-IP-Address}' AND acctstarttime <= '%S'" accounting_update_query = " UPDATE radacct SET framedipaddress = '%{Framed-IP-Address}', acctsessiontime = '%{%{Acct-Session-Time}:-0}', acctinputoctets = '%{%{Acct-Input-Gigawords}:-0}' << 32 | '%{%{Acct-Input-Octets}:-0}', acctoutputoctets = '%{%{Acct-Output-Gigawords}:-0}' << 32 | '%{%{Acct-Output-Octets}:-0}' WHERE acctsessionid = '%{Acct-Session-Id}' AND username = '%{SQL-User-Name}' AND nasipaddress = '%{NAS-IP-Address}'" accounting_update_query_alt = " INSERT INTO radacct (acctsessionid, acctuniqueid, username, realm, nasipaddress, nasportid, nasporttype, acctstarttime, acctsessiontime, acctauthentic, connectinfo_start, acctinputoctets, acctoutputoctets, calledstationid, callingstationid, servicetype, framedprotocol, framedipaddress, acctstartdelay, xascendsessionsvrkey) VALUES ('%{Acct-Session-Id}', '%{Acct-Unique-Session-Id}', '%{SQL-User-Name}', '%{Realm}', '%{NAS-IP-Address}', '%{NAS-Port}', '%{NAS-Port-Type}', DATE_SUB('%S', INTERVAL (%{%{Acct-Session-Time}:-0} + %{%{Acct-Delay-Time}:-0}) SECOND), '%{%{Acct-Session-Time}:-0}', '%{Acct-Authentic}', '', '%{%{Acct-Input-Gigawords}:-0}' << 32 | '%{%{Acct-Input-Octets}:-0}', '%{%{Acct-Output-Gigawords}:-0}' << 32 | '%{%{Acct-Output-Octets}:-0}', '%{Called-Station-Id}', '%{Calling-Station-Id}', '%{Service-Type}', '%{Framed-Protocol}', '%{Framed-IP-Address}', '0', '%{X-Ascend-Session-Svr-Key}')" accounting_start_query = " INSERT INTO radacct (acctsessionid, acctuniqueid, username, realm, nasipaddress, nasportid, nasporttype, acctstarttime, acctstoptime, acctsessiontime, acctauthentic, connectinfo_start, connectinfo_stop, acctinputoctets, acctoutputoctets, calledstationid, callingstationid, acctterminatecause, servicetype, framedprotocol, framedipaddress, acctstartdelay, acctstopdelay, xascendsessionsvrkey) VALUES ('%{Acct-Session-Id}', '%{Acct-Unique-Session-Id}', '%{SQL-User-Name}', '%{Realm}', '%{NAS-IP-Address}', '%{NAS-Port}', '%{NAS-Port-Type}', '%S', NULL, '0', '%{Acct-Authentic}', '%{Connect-Info}', '', '0', '0', '%{Called-Station-Id}', '%{Calling-Station-Id}', '', '%{Service-Type}', '%{Framed-Protocol}', '%{Framed-IP-Address}', '%{%{Acct-Delay-Time}:-0}', '0', '%{X-Ascend-Session-Svr-Key}')" accounting_start_query_alt = " UPDATE radacct SET acctstarttime = '%S', acctstartdelay = '%{%{Acct-Delay-Time}:-0}', connectinfo_start = '%{Connect-Info}' WHERE acctsessionid = '%{Acct-Session-Id}' AND username = '%{SQL-User-Name}' AND nasipaddress = '%{NAS-IP-Address}'" accounting_stop_query = " UPDATE radacct SET acctstoptime = '%S', acctsessiontime = '%{%{Acct-Session-Time}:-0}', acctinputoctets = '%{%{Acct-Input-Gigawords}:-0}' << 32 | '%{%{Acct-Input-Octets}:-0}', acctoutputoctets = '%{%{Acct-Output-Gigawords}:-0}' << 32 | '%{%{Acct-Output-Octets}:-0}', acctterminatecause = '%{Acct-Terminate-Cause}', acctstopdelay = '%{%{Acct-Delay-Time}:-0}', connectinfo_stop = '%{Connect-Info}' WHERE acctsessionid = '%{Acct-Session-Id}' AND username = '%{SQL-User-Name}' AND nasipaddress = '%{NAS-IP-Address}'" accounting_stop_query_alt = " INSERT INTO radacct (acctsessionid, acctuniqueid, username, realm, nasipaddress, nasportid, nasporttype, acctstarttime, acctstoptime, acctsessiontime, acctauthentic, connectinfo_start, connectinfo_stop, acctinputoctets, acctoutputoctets, calledstationid, callingstationid, acctterminatecause, servicetype, framedprotocol, framedipaddress, acctstartdelay, acctstopdelay) VALUES ('%{Acct-Session-Id}', '%{Acct-Unique-Session-Id}', '%{SQL-User-Name}', '%{Realm}', '%{NAS-IP-Address}', '%{NAS-Port}', '%{NAS-Port-Type}', DATE_SUB('%S', INTERVAL (%{%{Acct-Session-Time}:-0} + %{%{Acct-Delay-Time}:-0}) SECOND), '%S', '%{%{Acct-Session-Time}:-0}', '%{Acct-Authentic}', '', '%{Connect-Info}', '%{%{Acct-Input-Gigawords}:-0}' << 32 | '%{%{Acct-Input-Octets}:-0}', '%{%{Acct-Output-Gigawords}:-0}' << 32 | '%{%{Acct-Output-Octets}:-0}', '%{Called-Station-Id}', '%{Calling-Station-Id}', '%{Acct-Terminate-Cause}', '%{Service-Type}', '%{Framed-Protocol}', '%{Framed-IP-Address}', '0', '%{%{Acct-Delay-Time}:-0}')" group_membership_query = "SELECT groupname FROM radusergroup WHERE username = '%{SQL-User-Name}' ORDER BY priority" connect_failure_retry_delay = 60 simul_count_query = "" simul_verify_query = "SELECT radacctid, acctsessionid, username, nasipaddress, nasportid, framedipaddress, callingstationid, framedprotocol FROM radacct WHERE username = '%{SQL-User-Name}' AND acctstoptime IS NULL" postauth_query = "INSERT INTO radpostauth (username, pass, reply, authdate) VALUES ( '%{User-Name}', '%{%{User-Password}:-%{Chap-Password}}', '%{reply:Packet-Type}', '%S')" safe-characters = "@abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789.-_: /" } rlm_sql (sql): Driver rlm_sql_mysql (module rlm_sql_mysql) loaded and linked rlm_sql (sql): Attempting to connect to radius@localhost:/radius rlm_sql (sql): starting 0 rlm_sql (sql): Attempting to connect rlm_sql_mysql #0 rlm_sql_mysql: Starting connect to MySQL server for #0 rlm_sql (sql): Connected new DB handle, #0 rlm_sql (sql): starting 1 rlm_sql (sql): Attempting to connect rlm_sql_mysql #1 rlm_sql_mysql: Starting connect to MySQL server for #1 rlm_sql (sql): Connected new DB handle, #1 rlm_sql (sql): starting 2 rlm_sql (sql): Attempting to connect rlm_sql_mysql #2 rlm_sql_mysql: Starting connect to MySQL server for #2 rlm_sql (sql): Connected new DB handle, #2 rlm_sql (sql): starting 3 rlm_sql (sql): Attempting to connect rlm_sql_mysql #3 rlm_sql_mysql: Starting connect to MySQL server for #3 rlm_sql (sql): Connected new DB handle, #3 rlm_sql (sql): starting 4 rlm_sql (sql): Attempting to connect rlm_sql_mysql #4 rlm_sql_mysql: Starting connect to MySQL server for #4 rlm_sql (sql): Connected new DB handle, #4 rlm_sql (sql): starting 5 rlm_sql (sql): Attempting to connect rlm_sql_mysql #5 rlm_sql_mysql: Starting connect to MySQL server for #5 rlm_sql (sql): Connected new DB handle, #5 rlm_sql (sql): starting 6 rlm_sql (sql): Attempting to connect rlm_sql_mysql #6 rlm_sql_mysql: Starting connect to MySQL server for #6 rlm_sql (sql): Connected new DB handle, #6 rlm_sql (sql): starting 7 rlm_sql (sql): Attempting to connect rlm_sql_mysql #7 rlm_sql_mysql: Starting connect to MySQL server for #7 rlm_sql (sql): Connected new DB handle, #7 rlm_sql (sql): starting 8 rlm_sql (sql): Attempting to connect rlm_sql_mysql #8 rlm_sql_mysql: Starting connect to MySQL server for #8 rlm_sql (sql): Connected new DB handle, #8 rlm_sql (sql): starting 9 rlm_sql (sql): Attempting to connect rlm_sql_mysql #9 rlm_sql_mysql: Starting connect to MySQL server for #9 rlm_sql (sql): Connected new DB handle, #9 rlm_sql (sql): starting 10 rlm_sql (sql): Attempting to connect rlm_sql_mysql #10 rlm_sql_mysql: Starting connect to MySQL server for #10 rlm_sql (sql): Connected new DB handle, #10 rlm_sql (sql): starting 11 rlm_sql (sql): Attempting to connect rlm_sql_mysql #11 rlm_sql_mysql: Starting connect to MySQL server for #11 rlm_sql (sql): Connected new DB handle, #11 rlm_sql (sql): starting 12 rlm_sql (sql): Attempting to connect rlm_sql_mysql #12 rlm_sql_mysql: Starting connect to MySQL server for #12 rlm_sql (sql): Connected new DB handle, #12 rlm_sql (sql): starting 13 rlm_sql (sql): Attempting to connect rlm_sql_mysql #13 rlm_sql_mysql: Starting connect to MySQL server for #13 rlm_sql (sql): Connected new DB handle, #13 rlm_sql (sql): starting 14 rlm_sql (sql): Attempting to connect rlm_sql_mysql #14 rlm_sql_mysql: Starting connect to MySQL server for #14 rlm_sql (sql): Connected new DB handle, #14 rlm_sql (sql): starting 15 rlm_sql (sql): Attempting to connect rlm_sql_mysql #15 rlm_sql_mysql: Starting connect to MySQL server for #15 rlm_sql (sql): Connected new DB handle, #15 rlm_sql (sql): starting 16 rlm_sql (sql): Attempting to connect rlm_sql_mysql #16 rlm_sql_mysql: Starting connect to MySQL server for #16 rlm_sql (sql): Connected new DB handle, #16 rlm_sql (sql): starting 17 rlm_sql (sql): Attempting to connect rlm_sql_mysql #17 rlm_sql_mysql: Starting connect to MySQL server for #17 rlm_sql (sql): Connected new DB handle, #17 rlm_sql (sql): starting 18 rlm_sql (sql): Attempting to connect rlm_sql_mysql #18 rlm_sql_mysql: Starting connect to MySQL server for #18 rlm_sql (sql): Connected new DB handle, #18 rlm_sql (sql): starting 19 rlm_sql (sql): Attempting to connect rlm_sql_mysql #19 rlm_sql_mysql: Starting connect to MySQL server for #19 rlm_sql (sql): Connected new DB handle, #19 rlm_sql (sql): starting 20 rlm_sql (sql): Attempting to connect rlm_sql_mysql #20 rlm_sql_mysql: Starting connect to MySQL server for #20 rlm_sql (sql): Connected new DB handle, #20 rlm_sql (sql): starting 21 rlm_sql (sql): Attempting to connect rlm_sql_mysql #21 rlm_sql_mysql: Starting connect to MySQL server for #21 rlm_sql (sql): Connected new DB handle, #21 rlm_sql (sql): starting 22 rlm_sql (sql): Attempting to connect rlm_sql_mysql #22 rlm_sql_mysql: Starting connect to MySQL server for #22 rlm_sql (sql): Connected new DB handle, #22 rlm_sql (sql): starting 23 rlm_sql (sql): Attempting to connect rlm_sql_mysql #23 rlm_sql_mysql: Starting connect to MySQL server for #23 rlm_sql (sql): Connected new DB handle, #23 rlm_sql (sql): starting 24 rlm_sql (sql): Attempting to connect rlm_sql_mysql #24 rlm_sql_mysql: Starting connect to MySQL server for #24 rlm_sql (sql): Connected new DB handle, #24 rlm_sql (sql): starting 25 rlm_sql (sql): Attempting to connect rlm_sql_mysql #25 rlm_sql_mysql: Starting connect to MySQL server for #25 rlm_sql (sql): Connected new DB handle, #25 rlm_sql (sql): starting 26 rlm_sql (sql): Attempting to connect rlm_sql_mysql #26 rlm_sql_mysql: Starting connect to MySQL server for #26 rlm_sql (sql): Connected new DB handle, #26 rlm_sql (sql): starting 27 rlm_sql (sql): Attempting to connect rlm_sql_mysql #27 rlm_sql_mysql: Starting connect to MySQL server for #27 rlm_sql (sql): Connected new DB handle, #27 rlm_sql (sql): starting 28 rlm_sql (sql): Attempting to connect rlm_sql_mysql #28 rlm_sql_mysql: Starting connect to MySQL server for #28 rlm_sql (sql): Connected new DB handle, #28 rlm_sql (sql): starting 29 rlm_sql (sql): Attempting to connect rlm_sql_mysql #29 rlm_sql_mysql: Starting connect to MySQL server for #29 rlm_sql (sql): Connected new DB handle, #29 rlm_sql (sql): starting 30 rlm_sql (sql): Attempting to connect rlm_sql_mysql #30 rlm_sql_mysql: Starting connect to MySQL server for #30 rlm_sql (sql): Connected new DB handle, #30 rlm_sql (sql): starting 31 rlm_sql (sql): Attempting to connect rlm_sql_mysql #31 rlm_sql_mysql: Starting connect to MySQL server for #31 rlm_sql (sql): Connected new DB handle, #31 Module: Linked to module rlm_attr_filter Module: Instantiating module "attr_filter.accounting_response" from file /etc/raddb/modules/attr_filter attr_filter attr_filter.accounting_response { attrsfile = "/etc/raddb/attrs.accounting_response" key = "%{User-Name}" relaxed = no } reading pairlist file /etc/raddb/attrs.accounting_response Module: Checking session {...} for more modules to load Module: Linked to module rlm_radutmp Module: Instantiating module "radutmp" from file /etc/raddb/modules/radutmp radutmp { filename = "/var/log/radius/radutmp" username = "%{User-Name}" case_sensitive = yes check_with_nas = yes perm = 384 callerid = yes } Module: Checking post-proxy {...} for more modules to load Module: Checking post-auth {...} for more modules to load Module: Instantiating module "attr_filter.access_reject" from file /etc/raddb/modules/attr_filter attr_filter attr_filter.access_reject { attrsfile = "/etc/raddb/attrs.access_reject" key = "%{User-Name}" relaxed = no } reading pairlist file /etc/raddb/attrs.access_reject } # modules } # server server inner-tunnel { # from file /etc/raddb/sites-enabled/inner-tunnel modules { Module: Checking authenticate {...} for more modules to load Module: Checking authorize {...} for more modules to load Module: Checking session {...} for more modules to load Module: Checking post-proxy {...} for more modules to load Module: Checking post-auth {...} for more modules to load } # modules } # server radiusd: #### Opening IP addresses and Ports #### listen { type = "auth" ipaddr = * port = 0 Failed binding to authentication address * port 1812: Address already in use /etc/raddb/radiusd.conf[273]: Error binding to port for 0.0.0.0 port 1812 [root@radserv tmp]# *ldap module Configuration:* [root@radserv modules]# cat ldap # -*- text -*- # # $Id: d13892634e4a8458c942ce170f59f98521dce500 $ # Lightweight Directory Access Protocol (LDAP) # # This module definition allows you to use LDAP for # authorization and authentication. # # See raddb/sites-available/default for reference to the # ldap module in the authorize and authenticate sections. # # However, LDAP can be used for authentication ONLY when the # Access-Request packet contains a clear-text User-Password # attribute. LDAP authentication will NOT work for any other # authentication method. # # This means that LDAP servers don't understand EAP. If you # force "Auth-Type = LDAP", and then send the server a # request containing EAP authentication, then authentication # WILL NOT WORK. # # The solution is to use the default configuration, which does # work. # # Setting "Auth-Type = LDAP" is ALMOST ALWAYS WRONG. We # really can't emphasize this enough. # ldap { # # Note that this needs to match the name in the LDAP # server certificate, if you're using ldaps. server = "radserv.example.com" identity = "cn=Manager,dc=example,dc=com" #password = mypass basedn = "dc=example,dc=com" filter = "(uid=%{%{Stripped-User-Name}:-%{User-Name}})" base_filter = "(objectclass=radiusprofile)" # How many connections to keep open to the LDAP server. # This saves time over opening a new LDAP socket for # every authentication request. ldap_connections_number = 5 # How many times the connection can be used before # being re-established. This is useful for things # like load balancers, which may exhibit sticky # behaviour without it. (0) is unlimited. max_uses = 0 # Port to connect on, defaults to 389. Setting this to # 636 will enable LDAPS if start_tls (see below) is not # able to be used. #port = 389 # seconds to wait for LDAP query to finish. default: 20 timeout = 4 # seconds LDAP server has to process the query (server-side # time limit). default: 20 # # LDAP_OPT_TIMELIMIT is set to this value. timelimit = 5 # # seconds to wait for response of the server. (network # failures) default: 10 # # LDAP_OPT_NETWORK_TIMEOUT is set to this value. net_timeout = 1 # # This subsection configures the tls related items # that control how FreeRADIUS connects to an LDAP # server. It contains all of the "tls_*" configuration # entries used in older versions of FreeRADIUS. Those # configuration entries can still be used, but we recommend # using these. # tls { # Set this to 'yes' to use TLS encrypted connections # to the LDAP database by using the StartTLS extended # operation. # # The StartTLS operation is supposed to be # used with normal ldap connections instead of # using ldaps (port 636) connections start_tls = no # cacertfile = /path/to/cacert.pem # cacertdir = /path/to/ca/dir/ # certfile = /path/to/radius.crt # keyfile = /path/to/radius.key # randfile = /path/to/rnd # Certificate Verification requirements. Can be: # "never" (don't even bother trying) # "allow" (try, but don't fail if the cerificate # can't be verified) # "demand" (fail if the certificate doesn't verify.) # # The default is "allow" # require_cert = "demand" } # default_profile = "cn=radprofile,ou=dialup,o=My Org,c=UA" # profile_attribute = "radiusProfileDn" # access_attr = "dialupAccess" # Mapping of RADIUS dictionary attributes to LDAP # directory attributes. dictionary_mapping = ${confdir}/ldap.attrmap # Set password_attribute = nspmPassword to get the # user's password from a Novell eDirectory # backend. This will work ONLY IF FreeRADIUS has been # built with the --with-edir configure option. # # See also the following links: # # http://www.novell.com/coolsolutions/appnote/16745.html # https://secure-support.novell.com/KanisaPlatform/Publishing/558/3009668_f.SA... # # Novell may require TLS encrypted sessions before returning # the user's password. # # password_attribute = userPassword # Un-comment the following to disable Novell # eDirectory account policy check and intruder # detection. This will work *only if* FreeRADIUS is # configured to build with --with-edir option. # edir_account_policy_check = no # # Group membership checking. Disabled by default. # # groupname_attribute = cn # groupmembership_filter = "(|(&(objectClass=GroupOfNames)(member=%{control:Ldap-UserDn}))(&(objectClass=GroupOfUniqueNames)(uniquemember=%{control:Ldap-UserDn})))" # groupmembership_attribute = radiusGroupName # compare_check_items = yes # do_xlat = yes # access_attr_used_for_allow = yes # # The following two configuration items are for Active Directory # compatibility. If you see the helpful "operations error" # being returned to the LDAP module, uncomment the next # two lines. # # chase_referrals = yes # rebind = yes # # By default, if the packet contains a User-Password, # and no other module is configured to handle the # authentication, the LDAP module sets itself to do # LDAP bind for authentication. # # THIS WILL ONLY WORK FOR PAP AUTHENTICATION. # # THIS WILL NOT WORK FOR CHAP, MS-CHAP, or 802.1x (EAP). # # You can disable this behavior by setting the following # configuration entry to "no". # # allowed values: {no, yes} # set_auth_type = yes # ldap_debug: debug flag for LDAP SDK # (see OpenLDAP documentation). Set this to enable # huge amounts of LDAP debugging on the screen. # You should only use this if you are an LDAP expert. # # default: 0x0000 (no debugging messages) # Example:(LDAP_DEBUG_FILTER+LDAP_DEBUG_CONNS) #ldap_debug = 0x0028 # # Keepalive configuration. This MAY NOT be supported by your # LDAP library. If these configuration entries appear in the # output of "radiusd -X", then they are supported. Otherwise, # they are unsupported, and changing them will do nothing. # keepalive { # LDAP_OPT_X_KEEPALIVE_IDLE idle = 60 # LDAP_OPT_X_KEEPALIVE_PROBES probes = 3 # LDAP_OPT_X_KEEPALIVE_INTERVAL interval = 3 } } [root@radserv modules]# Am I missing something. Please let me know Thanks, Dhivya
